LAB Equipment
| Model | VC(2) |
| Color temperature range | 2700k-7500k |
| Light source | D65 ,TL84 ,A |
| Size | 104*155*155cm |
Dimensions and Weight
Before packing:?98*150*150cm
After packing: 104*155*155cm
Weight after packing: about 100KG
?
Brand: TILO

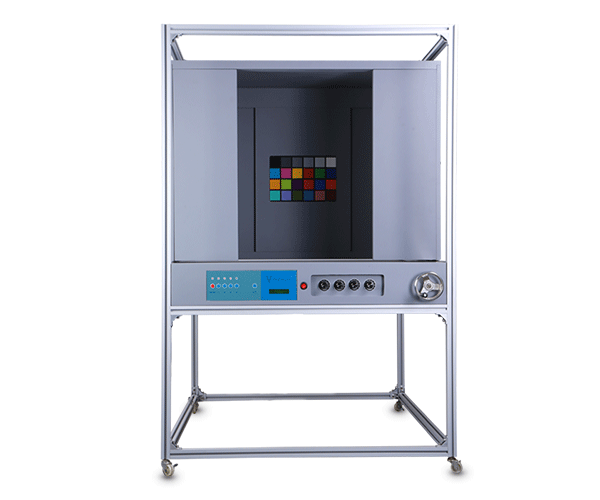

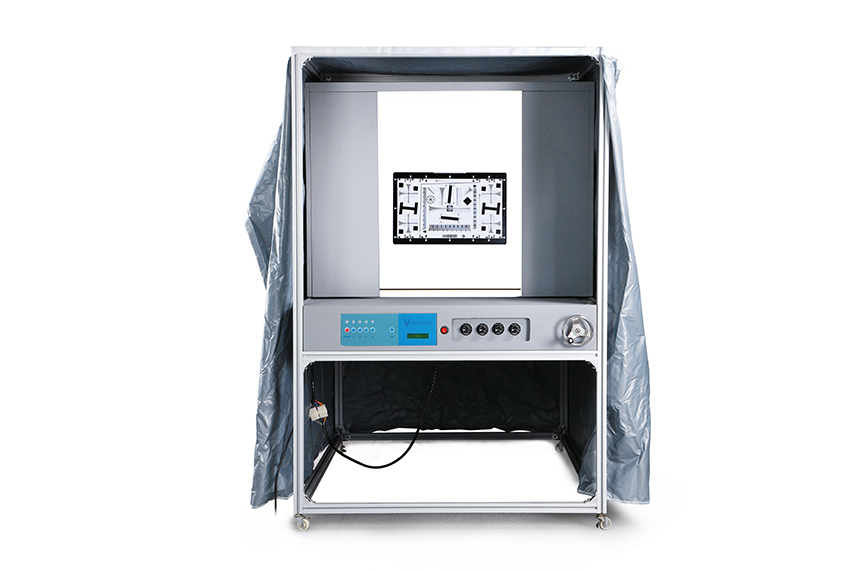

VideoChecker provides a special lighting source for the test of your Video Camera. Its main functions are as below:
- High-level lighting homogeneity.
- Testing distance adjustable.
- Selectable color-temperature as required.
- Continuable Light Intensity Adjustment.
- Configure three light sources: D65, TL84, A
?
Light Sources :
?
D65? color temperature 6500k? ?illumination: 10lux- 2800lus adjusted
TL84 ?color temperature 4000k? illumination: 10lux- 3000lus adjusted
F/A? ??color temperature 2856k? ?illumination: 0.1lux- 800lus adjusted
Optional Light Source : 10000K,D75,D50,CWF,U35,TL83
Fetures :
1. 4 groups of light combination switches & time-meter for light aging control
2. Color temperature range : 2700k-7500k
3. Adjustable light intensity : (1%-100%)
4. Lighting Homegeneity : >80%
5. Adjustable focal length :10cm-175cm
